Basic Info.
Model NO.
ZYX-J30
Nominal Voltage
12V
Charger Style
Pulse Charger
Compatible Battery Type
12-Volt
Size
DC;AC
Certification
PSE, RoHS, CE, FCC
Socket Type
EU,UK,Au,Us for Your Choose
Recyclable
Recyclable
Product Name
12V8a/24V4a Car Battery Charger
Charger Name
Full Intelligent Battery Charger
Use for
for Car Motorcycle Boat Truck Marine
Brand
E-Fast
Model No.
Zyx-J30
Output Current
DC 12V8a/24V4a
Protection
Short Circuit Protection, Over-Charging, Overcurre
Function
Electric, Car Charger, Fast Charger, Pulse Repair
Application
12V 6ah-150ah Lead Acid Battery
Output Power
140W
Input Voltage and Current
100-240V AC
Material
ABS
Net Weight
Approx 680g
OEM Service
Acceptable
Advantage
Intelligent Repair
Transport Package
Standard Export Carton
Specification
230(L)*130(W)*65(H)mm
Trademark
E-Fast
Origin
China
HS Code
8504409999
Production Capacity
8000PCS/Day
Packaging & Delivery
Package Size
25.00cm * 15.00cm * 10.00cm
Package Gross Weight
1.000kg
Product Description
| Product Name | Digital Automatic 12V 24V 8A Car Motorcycle Battery Charger LCD Screen Smart Pulse Repair Battery Charger with 3-stage charging | |||
| Type | CAR Battery CHARGER, Fast Charger | |||
| Material | ABS | |||
| Protection | Short Circuit Protection, Over-charging, Overcurrent, Overvoltage | |||
| Charger model | ZYX-J30 | |||
| Input voltage and current | 100-240V AC ,50-60Hz | |||
| output voltage and current | 12V/8A, 24V/4A | |||
| Output Power | 140W | |||
| Place of Origin | China | |||
| Style | Universal Battery Charger | |||
| Output Voltage | 12V8A/24V4A | |||
| Protection | Short Circuit Protection | |||
| Efficiency | 85% | |||
| Size | 170(L)*98(W)*58(H) | |||
| Warranty | 1 Year | |||
12V 8-Amp and 24V 4-Amp quick battery charger, charging speed is much faster than other automatic chargers. Charge or repair all 12-volt and 24volt lead-acid automotive, marine and deep-cycle batteries including AGM, GEL, SLA, Flooded in cars, trucks, SUVs, motorcycles, lawn mowers, boats marine, etc.
HIGH-EFFICIENCY PULSE REPAIR
Automatically detects battery sulfation and acid stratification, take newest pulse repair function to restore lost battery performance for stronger engine starts and extended battery life. Note: can not activate or charging totally dead batteries.
ONE KEY OPERATION - VISUALIZED CHARGING
Large LCD display the charging and battery status; charge voltage and current, inside temperature, charge percentage, summer mode, winter mode, etc. More convenient.
PLUG AND PLAY
no complicated steps, just plug and charge. All-in-one battery solution as battery charger, battery maintainer,trickle charger, plus battery desulfator.
no complicated steps, just plug and charge. All-in-one battery solution as battery charger, battery maintainer,trickle charger, plus battery desulfator.

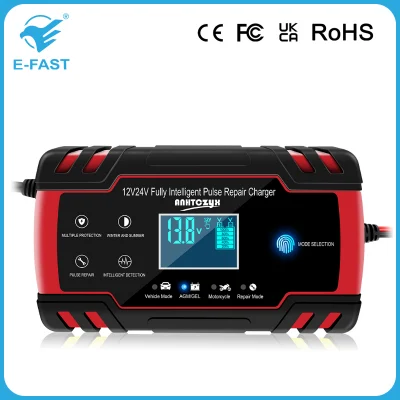

E-FAST ZYX-J30
Smart Pulse Repair Battery Chargers 12v 8A 24V4A lead acid car battery charger
This is a fully automatic battery charger.
* Automatic charging protects your battery from being overcharged.So you can leave the charger connected to the battery indefinitely.
* Chargers are suitable for most battery types including Calcium,Gel and AGM,Wet batteries.They may also help restore drained and sulphated batteries.
* Types of batteries:Most types of lead acid batteries including Calcium,GEL and AGM,Wet,EFB, etc.
* Microprocessor control (CPU).
Feature:
* Touch switch mode technology:Yes;
* Polarity protection:Yes;
* Output short protection:Yes;
* Non battery link protection:Yes;
* Over temperature protection:Yes;
* Short circuit protection:Yes;
* Over current protection:Yes;
* Overheat protection:Yes;
* Fire protection:Yes;
* Low voltage protection:Yes;
* Over voltage protection:Yes;
* Reverse protection:Yes;
* Electric shock protection:Yes;
* Cooling: Fan;
* Automatic charging protects your battery from being overcharged.So you can leave the charger connected to the battery indefinitely.
* Chargers are suitable for most battery types including Calcium,Gel and AGM,Wet batteries.They may also help restore drained and sulphated batteries.
* Types of batteries:Most types of lead acid batteries including Calcium,GEL and AGM,Wet,EFB, etc.
* Microprocessor control (CPU).
Feature:
* Touch switch mode technology:Yes;
* Polarity protection:Yes;
* Output short protection:Yes;
* Non battery link protection:Yes;
* Over temperature protection:Yes;
* Short circuit protection:Yes;
* Over current protection:Yes;
* Overheat protection:Yes;
* Fire protection:Yes;
* Low voltage protection:Yes;
* Over voltage protection:Yes;
* Reverse protection:Yes;
* Electric shock protection:Yes;
* Cooling: Fan;
(1) Output short circuit and anti-reverse connection: the product has the prompt of output short circuit and reverse connection of battery (there is spark, LCD displays "ERO", and the product will not be damaged due to reverse connection or short circuit during the detection process);
(2) Battery power detection: the AC input voltage is not connected, and the battery clip is clamped at both ends of the positive and negative poles of the battery (red positive and black negative), which can display the current and voltage parameters of the battery (digital tube display data: voltage and ambient temperature cycle display, and the power is displayed in percentage form according to the detected data);
(3) Winter and summer mode: during the charging process, detect the ambient temperature, adjust the product charging state in time, and ensure the battery life and charging safety. Winter mode: LCD displays snowflakes, summer mode: LCD displays the sun;
(4) Over-temperature protection: the product has the over-temperature protection function. If the product detects that the temperature is too high, it will automatically start the over-temperature protection program. When the temperature returns to the normal value, the initial charging state will be restored;
(5) Overcharge protection: the product has the overcharge protection function to avoid the battery service life reduction caused by overcharge and enhance the reliability of charging safety (the maximum charging time is 20H by default);
(6) Charging voltage self-test: after the battery is charged, it will automatically self-test without manual switching. If it passes the self-test, it will enter the floating charge. Otherwise, it will enter the compensation charge. If the compensation charge is completed, it will enter the floating charge;
(7) LCD display status:
a: Full state: LCD display "OFF", battery grid "100%";
b: Clip disconnection mode: LCD displays "OFF" and power grid is "100%";
c: Fault mode: LCD displays "ERO" and "Flt" icons, and the buzzer rings long;
d: Charging state: LCD circularly displays voltage, current and temperature, and battery grid "charging effect display";
e: Repair mode: LCD displays "Rep" and power grid is "100%";
f: No-load detection battery: LCD displays the voltage and temperature in a cycle, and the power grid is displayed in percentage according to the battery power.
3.Product function mode selection
(1) Car battery charging mode
4.Charging Steps
(1) detect the state of the battery before charging, the output alligator clips on both ends of the battery, red positive and black negative, with LCD display data, this step must ensure that AC power is not accessed, only AC power disconnected before operation;
(2) the charger AC input line into the plug, and then open the plug switch.
(3) mode selection and then charging.
(4) when the charger shows "FUL" or "End", indicating that the charging or repair mode has ended, disconnect the AC input, observe the battery capacity status (LCD cycle display voltage and temperature, power grid shows the current battery capacity). After confirming that it is full, disconnect the alligator clips from the battery.
a: Charging current: Imax: [email protected]. b: Charging voltage: 13.5V - intelligent control voltage (winter mode: 15.5V, summer mode: 14.6V, spring and autumn mode: 14.9V). c: battery type: lead-acid battery. d: charging maximum current Imax: [email protected] e: maximum single charge duration tmax: 20H (maximum single charge capacity 85-95AH).
(2) AGM battery charging mode a: Charging current: Imax: [email protected]. b: Charging voltage: 13.5 V. c: battery type: AGM battery. d: charging maximum current Imax: [email protected] e: maximum single charge duration tmax:20H (maximum single charge capacity 10-150AH).
(3) Motorcycle charging mode a: Charging current: Imax: [email protected]. b: Charging voltage: 13.5 V. c: battery type: conventional DC12V lead-acid battery. d: charging maximum current Imax: [email protected] e: maximum single charge duration tmax:20H (maximum single charge capacity 2-15AH).
(4) Lead-acid battery repair mode a: repair principle: positive pulse voltage repair mode. b: repair voltage: 14.9V. c: battery type: restricted to lead-acid type batteries. d: maximum repair time tmax: 20H.
4.Charging Steps
(1) detect the state of the battery before charging, the output alligator clips on both ends of the battery, red positive and black negative, with LCD display data, this step must ensure that AC power is not accessed, only AC power disconnected before operation;
(2) the charger AC input line into the plug, and then open the plug switch.
(3) mode selection and then charging.
(4) when the charger shows "FUL" or "End", indicating that the charging or repair mode has ended, disconnect the AC input, observe the battery capacity status (LCD cycle display voltage and temperature, power grid shows the current battery capacity). After confirming that it is full, disconnect the alligator clips from the battery.
1.10+ Years Experience,Quick Respond, Fast Shipping 2.Factory directly, Massive Stock, lead time 0-3 days
3. We can send free samples for customers to check the effect and quality.
4. Provide good sale service like tracking number, mass production pictures.
5. Quality Assurance,good price,stable supply.
6. One-stop purchasing service
Charging
1. Check whether your battery parameters match the charger;
2. Clip the output crocodile clips at both ends of the battery, red positive and black negative
3. Insert the charger AC input line into the socket, and then turn on the socket switch
4. Select the mode and select the corresponding charging mode, such as "Car Mode" for car battery, "Motorcycle Mode" for motorcycle battery, "Start-Stop Mode" for starting and stopping power bottle, and then charge.
5. When the charger displays "FUL", it means that the charging mode has ended. Disconnect the AC input. After 10S, observe the battery capacity status (the panel circularly displays the voltage and the battery power). After confirming that it is full,take off the crocodile clip.
Safety precautions
2. Insert the charger AC input line into the socket, and then turn on the socket switch
3. Press the key to switch to repair mode, and then repair it
4. It is recommended to repair motorcycle batteries for about 5 hours and car batteries for about 8 hours! The charger is repaired by default for about 20 hours at a time, and the arrival time will show "FUL" to indicate that the repair mode has ended! Pay attention to the battery temperature when repairing, and stop repairing if the battery overheats!
5. After the repair, disconnect the AC input, and switch the mode key to enter the charging mode at this time to see if it can be charged normally. If it can't be charged after 1-2 cycles of repair, please replace the battery.
3. We can send free samples for customers to check the effect and quality.
4. Provide good sale service like tracking number, mass production pictures.
5. Quality Assurance,good price,stable supply.
6. One-stop purchasing service
Charging 1. Check whether your battery parameters match the charger;
2. Clip the output crocodile clips at both ends of the battery, red positive and black negative
3. Insert the charger AC input line into the socket, and then turn on the socket switch
4. Select the mode and select the corresponding charging mode, such as "Car Mode" for car battery, "Motorcycle Mode" for motorcycle battery, "Start-Stop Mode" for starting and stopping power bottle, and then charge.
5. When the charger displays "FUL", it means that the charging mode has ended. Disconnect the AC input. After 10S, observe the battery capacity status (the panel circularly displays the voltage and the battery power). After confirming that it is full,take off the crocodile clip.
Safety precautions
1. Do not charge lithium batteries! It is strictly forbidden to charge scrapped, non-lead-acid batteries or non-voltage batteries! Do not charge non-rechargeable batteries! Do not approach open flames when charging! It is strictly forbidden to disassemble without permission when there is high pressure in the machine
2 Before charging, observe whether the battery is damaged and whether there are abnormal phenomena such as liquid overflow around the battery. If there are abnormal phenomena, please charge carefully;
3. To charge the vehicle or equipment, please remove the battery and charge it in a safe space without flammable items around;
4. When charging, the surface of the battery should not be covered with objects. When charging the battery, it should be erected and placed directly, and it should not be skewed to avoid the surrounding high temperature and high humidity environment;
5. When the charging time exceeds 12 hours and is unattended, the power supply should be cut off. It is strictly forbidden to charge for a long time!
6. Used indoors, beware of rain. During charging, the charger is strictly prohibited from being covered and must be placed in a well-ventilated place. It is strictly forbidden to put it in the car or charge it. Beware of flames, sparks and explosive gases to avoid fire;
7. If the power cord is damaged, in order to avoid danger, it must be replaced by the manufacturer or its maintenance department or similar professionals;
8. Disconnect the power supply before connecting or disconnecting the battery charger with the battery.
For your legitimate rights and interests, please abide by the above terms and conditions! Our company promises a warranty period of 12 months.
2 Before charging, observe whether the battery is damaged and whether there are abnormal phenomena such as liquid overflow around the battery. If there are abnormal phenomena, please charge carefully;
3. To charge the vehicle or equipment, please remove the battery and charge it in a safe space without flammable items around;
4. When charging, the surface of the battery should not be covered with objects. When charging the battery, it should be erected and placed directly, and it should not be skewed to avoid the surrounding high temperature and high humidity environment;
5. When the charging time exceeds 12 hours and is unattended, the power supply should be cut off. It is strictly forbidden to charge for a long time!
6. Used indoors, beware of rain. During charging, the charger is strictly prohibited from being covered and must be placed in a well-ventilated place. It is strictly forbidden to put it in the car or charge it. Beware of flames, sparks and explosive gases to avoid fire;
7. If the power cord is damaged, in order to avoid danger, it must be replaced by the manufacturer or its maintenance department or similar professionals;
8. Disconnect the power supply before connecting or disconnecting the battery charger with the battery.
For your legitimate rights and interests, please abide by the above terms and conditions! Our company promises a warranty period of 12 months.
Repair
1. Clip the output crocodile clips at both ends of the battery, red positive and black negative2. Insert the charger AC input line into the socket, and then turn on the socket switch
3. Press the key to switch to repair mode, and then repair it
4. It is recommended to repair motorcycle batteries for about 5 hours and car batteries for about 8 hours! The charger is repaired by default for about 20 hours at a time, and the arrival time will show "FUL" to indicate that the repair mode has ended! Pay attention to the battery temperature when repairing, and stop repairing if the battery overheats!
5. After the repair, disconnect the AC input, and switch the mode key to enter the charging mode at this time to see if it can be charged normally. If it can't be charged after 1-2 cycles of repair, please replace the battery.
