Product Description

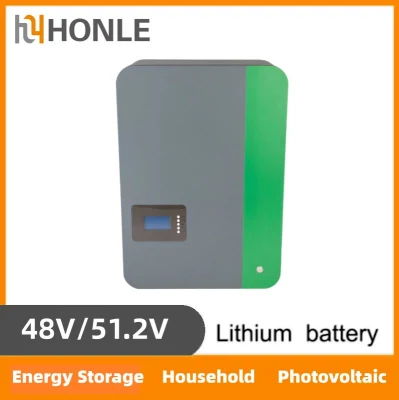

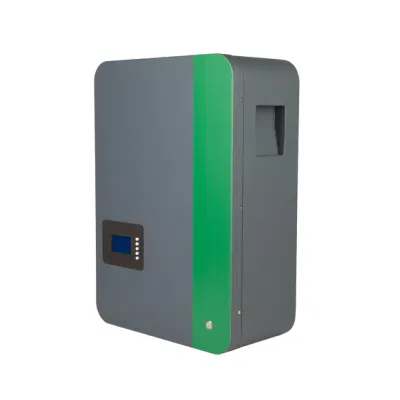

Powerwall Energy Storage (Residential)
key Features:
1.Long Cycle Life
2.Lightweight & Portable
3.Compact Design
4.Plug-and-Play Installation
5.Space-Optimized Solution
| Model | HLB-48100 | HLB-48150 | HB-48200 |
| Standard Voltage | 48VDc | ||
| Voltage | 37.5-54.75VDc | ||
| Nominal Capacity | 100Ah | 150Ah | 200Ah |
| Rated Capacity | 4.8kWh | 7.2kWh | 9.6kWh |
| Communication Protocol | CAN/RS485/WIFI/4G/Blue Tooth | ||
| Efficiency (at 0.5C) | 98% | ||
| Cell Self-Discharge | <5% / Month | ||
| Maximum Allowed Modules in Parallel | 15(72kWh) | 15(108kWh) | 15(144kWh) |
| Depth of Discharge | Up to 100% | ||
| Useful Life | 8-10 Years | ||
| Cycle Life | 6000 (@ 80% DoD) | ||
| Protection | Over temperature, Over current, Short circuit, Over-charging, Over-discharging, Low voltage | ||
| Charge Specifications | |||
| Recommended Charge Current | 25A | 50A | 50A |
| Maximum Charge Current | 50A | 100A | 100A |
| Recommended Charge Voltage | 54V | 54V | 54V |
| Maximum Charge Voltage | 54.75V | 54.75V | 54.75V |
| Discharge Specifications | |||
| Recommended Discharge Current | 25A | 50A | 50A |
| Maximum Discharge Current | 50A | 100A | 100A |
| Recommended Low Voltage Disconnect | 41.25V | ||
| Battery Low Voltage Protection | 39.75V | ||
| Battery Recovery Voltage | 45V | ||
| Mechanical Specifications | |||
| Dimensions | 510*440*220mm | 690*530*215mm | 690*530*215mm |
| Weight | 50kg | 70kg | 90kg |
| Terminal Type | M6 | ||
| Case Material | Industrial Grade Iron | ||
| Enclosure Protection | IP20 | ||
| Installation | Cabinet or Wall installation | ||
| Cell Type Chemistry | LiFePO4 | ||
| Compliance Specifications | |||
| Certifications | CE,FCC,CCC | ||
| Shipping Classification | UN 38.3,UN 3480,Class 9 | ||
| Temperature Specifications | |||
| Discharge Temperature | -20-65°C | -20-65°C | -20-65°C |
| Charge Temperature | 0-55°C | 0-55°C | 0-55°C |
| Storage Temperature | -20-45°C | -20-45°C | -20-45°C |
Our state-of-the-art international production equipment boasts an annual production capacity of 30,000 square meters, and we are open to negotiating maximum capacities for our power solutions. Honle's new energy power solutions and battery products find wide applications in various traditional household energy storage, power walls, commercial energy storage systems, and other dynamic information power fields.
Honle Group has established more than 100 agents in China, and established Honle International Tanzania Co., Ltd. and Honle International Uganda Co., Ltd. abroad.
At the same time, offices and general agents have been established in more than 30 countries and regions including Indonesia, Russia, Uzbekistan, Nigeria, and the United Arab Emirates.
Production Line
As an innovation-oriented company, our production line is equipped with the latest technology and machinery, as well as high level testing machine and devices. We have a team of experienced and skilled workers who oversee the production process and ensure that every product meets the strict quality standards.
Packing list:
1-metre Parallel line *1pc
User instruction*1pc
2-metre inverter communication network cable *1pc
Red-black 80C meters parallel positive and negative wires (Line 6)*1 pair
User instruction*1pc
Q1.Do you have any MOQ limit?
A: Yes. In general, MOQ is 1 set.
Q2. Factory or Trading?
A: We are the manufacturer specializing in lithium ion battery.
Q3 How about your delivery time?
A: For the big capacity, we can deliver around 25 days. Depends on the items and the quantity of your order. It usually takes 1-2 days if in stock.
Q4. Can you OEM and ODM Service?
A: Yes, we can provide free OEM Service, and ODM Service. We can design the packaging and logo according to your requirements.
Q5. Do you test all your goods before delivery?
A: Yes, all our products have been tested before delivery.
Q6. What is the biggest difference between your battery and other suppliers?
A: More than 20 years of manufacturing experience.
Honle Energy invests greatly in R&D to ensure the reliable, stable and technically advanced battery energy storage systems.
Q7.Tell me the standard of package?
A: We use strong wooden case for protection.
Q8.Could you offer Form A or C/O ?
A: No problem. We can prepare relative documents to origin affairs office or other office to apply for related certificates for free.
