Basic Info.
Model NO.
PDC10000A/ PC5000B/ PDC6000A/ Customize Servo Head
Conductive Way
Both-Sided
Welding Spot Number
Double
Type
Special
Max Curr
10000A
Usage
Spot Weldinng
Voltage
110~380V
Max. Welding Thickness
0.5mm
Power (Kw)
800
Rising Time
0.00~9.99ms
Slow Down Time
0.00~9.99ms
Cooling Time
0.00~9.99ms
Holding Time
0.00~9.99ms
Transport Package
Wooden Case
Specification
205(W)*310(H)*446(D)
Trademark
Styler
Origin
Dongguan, China
Production Capacity
10000 Set/Year
Product Description

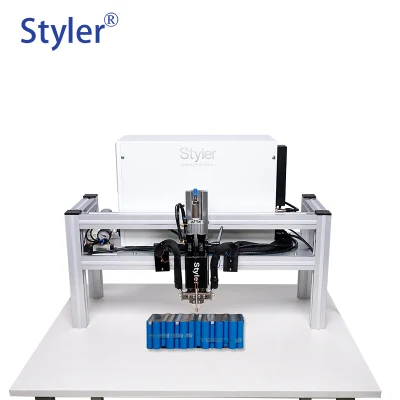

Transistor type precision energy storage spot welder
Transistor spot welding machine welding current rises very fast, can complete the welding process in a shorttime, the welding heat affected zone is small, and the welding process has no spatter. It is most suitable for
ultra-precision welding, such as thin wires, such as button battery connectors, Small contacts and metal foils
of relays
Product Paramenters
| Model | PRECISE TRANSISTOR WELDING POWER SUPPLY |
| MODEL | PDC10000A/ PDC6000A/ PDC5000B |
| MAX CURR | 6000-10000A |
| MAX POWER | 800W |
| MAX VOLT | 30V |
| INPUT | single phase 100~120VAC or single phase200~240VAC 50/60Hz |
| CONTROLS | 1,const. curr. 2,const. volt. 3,const. curr. and volt. combination. |
| pressure contact time | 0000~2999ms |
| resistance pre-detection welding time | 0.00~1.00ms |
| pre-detection time | 2ms(fixed) |
| rising time | 0.00~9.99ms |
| interval time | welding1,welding2 time 0.00~9.99ms |
| slow down time | 0.00~9.99ms |
| cooling time | 0.00~9.99ms |
| holding time | 0.00~9.99ms |
| CURR STG RG | 0.00~9.99KA |
| VOLT STG RG | 0.00~9.99V |
| VOLT RG | 0.00~9.99V |
| EX. SIZE | 205(W)X310(H)X446(D) |
| G.W. | 24KG |
