Basic Info.
Structure Type
Closed Type
Compress Level
Double-Stage
Refrigerant Type
Freon
Flow Rate
20L/Min
Pressure Range
0.05~3kg
Power
250W
Condition
New
Transport Package
Wooden Pallet
Specification
400× 300× 635(mm)
Trademark
AUWII
Origin
China
Production Capacity
2000
Product Description

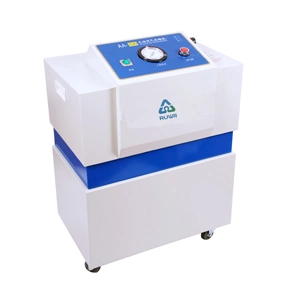

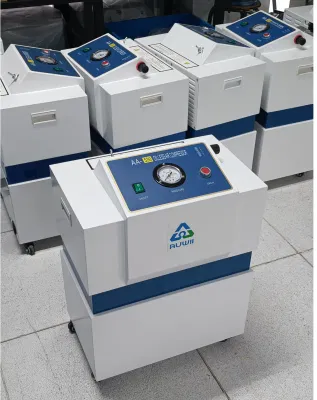

AUWII oil-less air compressor is specially designed to support AAS, ICP-OES, ICP-MS, Termovap Sample Con centrator, etc. with pure, dry compressed air and constant pressure.
Note:
AA oil free air compressor no need manual drainage, can be constantly use;
AA*A oil free air compressor adopts electronic water removal, mainly used in high temperature, high humidity area, can ensure that the outlet is dry.
Functions and Features:
Double cylinder piston compressor, stable and reliable operation, put out pure oil without lubri cate;
Original air-cooled screw centrifugal dehydrator, cooling of compressed air rapidly, centrifugal separation of condensate;
Optional electronic dehydrator, water removal thoroughly;
Stainless steel storage sink which can prevent rust;
Vertical design, independent suspension damping mechanism, nest egg type sound-absorbing sponge, less vibration, lower noise;
Triple filters makes gas sophisticate and pure.
Specification:
AA oil free air compressor no need manual drainage, can be constantly use;
AA*A oil free air compressor adopts electronic water removal, mainly used in high temperature, high humidity area, can ensure that the outlet is dry.
Functions and Features:
Double cylinder piston compressor, stable and reliable operation, put out pure oil without lubri cate;
Original air-cooled screw centrifugal dehydrator, cooling of compressed air rapidly, centrifugal separation of condensate;
Optional electronic dehydrator, water removal thoroughly;
Stainless steel storage sink which can prevent rust;
Vertical design, independent suspension damping mechanism, nest egg type sound-absorbing sponge, less vibration, lower noise;
Triple filters makes gas sophisticate and pure.
Specification:
| model | Displacement | Press | power | Main character | Overall Dimension |
| W×D×H mm | |||||
| ACA320 | 20L/min | 0.05~3kg | 250W | Oil-free dual-piston compressor box-type silent | 400×300×635 |
| AA320 | 20L/min | 0.05~3kg | 260W | Automatic drainage | 430×335×676 |
| AA320A | 20L/min | 0.05~3kg | 320W | Automatic drainage, internal electronic water removal | 430×335×676 |
| AA530 | 30L/min | 0.05~5kg | 600W | Automatic drainage | 500×335×706 |
| AA530A | 30L/min | 0.05~5kg | 660W | Automatic drainage, internal electronic water removal | 500×335×706 |
| AA530Z | 50L/min | 0.05~5.5kg | 800W | Automatic drainage, high efficiency | 500×335×706 |
| AA650 | 50L/min | 0.05~6kg | 1250W | Automatic drainage. | 560×400×830 |
| AA780 | 80L/min | 0.05~7kg | 1550W | Automatic drainage. | 560×400×830 |
