Basic Info.
Product Description
KSCY425-10
Specifications
1. KSCY(LGCY) series are equipped with high efficient air end
2. With a well-known diesel engine or Yuchai.
3. The units come with several protections alarm which provide maximum protection to the system.
4. The advanced producing technology gives this series a low operating sound environment and a less vibration design.
5. The whole unit is reliable and easy to operate and maintain.
Product Features
2> Exhaust pipe is set in the trail position, more environmental-friendly
3> Part position and road system structure is more reasonable
4> Import solenoid valve (advance configuration)
5> Imported oil filter and customized oil and gas separator filter (Germany Mann)
6> Higher Configuration of pipeline connection details parts
Product Parameters
| Product number | Exhaust pressure | Exhaust volume | Matching engine power | Exhaust connection | Weight | Dimensions |
| (Mpa) | (m³/min) | (HP) | (kg) | (mm) | ||
| KSCY220-8X | 0.8 | 6 | Xichai Country 3:75HP | G1 1/4×1, G3/4×1 | 1400 | 3240×1760×1850 |
| KSCY330-8 | 0.8 | 9 | Xichai Country 3:120HP | G3/4×1 , G1 1/2×1 | 1550 | 3240×1760×1785 |
| KSCY425-10 | 1.0 | 12 | Xichai Country 3:160HP | G1 1/2×1, G3/4×1 | 1880 | 3300×1880×2100 |
| KSCY400-14.5 | 1.45 | 11 | Yuchai four-cylinder country 3:160HP | G1 1/2×1, G3/4×1 | 1880 | 3300×1880×2100 |
| KSCY400-14.5K | 1.45 | 11 | 160HP | G1 1/2×1, G3/4×1 | 2000 | 3500×1850×2100 |
| KSCY550-13 | 1.3 | 15 | Yuchai four-cylinder country 3:190HP | G1 1/2×1, G3/4×1 | 2400 | 3000×1520×2200 |
| KSCY-550/15-570/12 | 1.45 | 15 | Yuchai Country 3:190HP | G1 1/2×1, G3/4×1 | 2400 | 3000×1520×2200 |
| KSCY-550/15-570/12K | 1.45 | 15 | 190HP | G1 1/2×1, G3/4×1 | 2400 | 3000×1520×2200 |
| KSCY560-15 | 1.5 | 16 | Yuchai Country 3: 220HP | G2×1, G3/4×1 | 2400 | 3000×1520×2200 |
| KSCY560-15K | 1.5 | 16 | 210HP | G2×1, G3/4×1 | 2400 | 3000×1520×2200 |
| KSCY750-20 | 2.0 | Yuchai Country 3:310HP | G2×1, G3/4×1 | 3900 | 3300×1800×2300 |
Detailed Photos
Air volume automatic control system
According to the operating pressure, the air volume adjustment device automatically and steplessly adjusts the air compressor suction volume and the diesel engine speed. Fully match the air supply and consumption, so as to achieve the best results with the lowest fuel consumption.
Low noise operation
Quiet cover design, low operating noise, and the machine design are more environmentally friendly.
Dedicated engine strong power

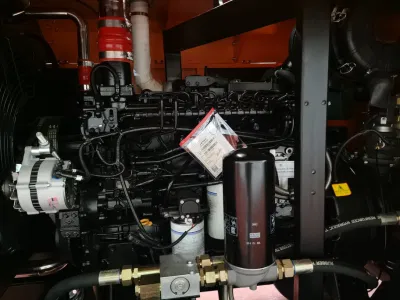

It is equipped with special heavy-duty diesel engines such as Yuchai and C to achieve the best combustion state in the whole range of engine operation so that the product has higher reliability, stronger power, and better fuel economy.

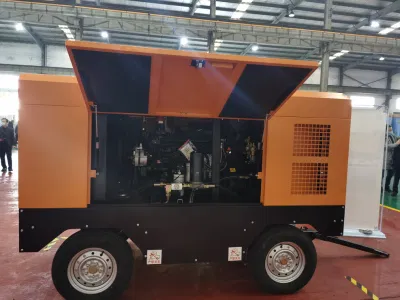

Exquisite design
It is rectangular in shape and equipped with 4 wheels. It is convenient for transportation and transfer, and can adapt to the working environment under various terrains.
Why Choose Us
In 2009, Kaishan established Jersey North American Research Center in Seattle in the United States, attracting many top-notch compressor experts from around the world and creating a new model that is aptly described as "developed in America, Made in China"
Kaishan is headquartered in Quzhou in Zhejiang, China. It has subsidiaries in Shanghai, Chgonqing, Guangdong, Taiwan, Hong Kong, Seattle, San Diego, Orlando, Melbourne, Singapore, Jakarta, Leobersdorf, Budapest and Belgrade, as well as offices in Russia, Colombia, Brazil, Korea, Malaysia and Thailand.
Product quality is strictly controlled
Packaging and Shipping
The air compressor is guaranteed for one year. In addition to wearing parts and consumables, if the spare parts within the warranty period are broken, the company provides free spare parts replacement, but the buyer needs to pay the freight. Please ask customer service for specific warranty rules.
FAQ
Q1: Are you a factory or trade company?
A1: We are a factory. And we have ourselves trading company.
Q2: What is the exact address of your factory?
A2: Our company is located in JNo.9 Kaixuan Ave West, Economic Zone Quzhou, Zhejiang, China
Q3: Warranty terms of your machine?
A3: One-year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts for the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your requirements.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can deliver the goods within 7-15 days. Other electricity or another color we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with a professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
