Basic Info.
Model NO.
BD4A24S4P
Over Discharge Protection
Yes
MOQ
1PC
Battery Type
Lithium Battery
Usage
Solar Energy Storage Systems
Features
Protect Battery Cell
Type of BMS
Smart BMS
BMS
Built-in BMS Protection
Current
40A
Transport Package
Carton Box
Specification
8s-24s
Trademark
JK
Origin
China
HS Code
8536300000
Production Capacity
5000PCS/Month
Packaging & Delivery
Package Size
17.00cm * 11.00cm * 3.00cm
Package Gross Weight
0.700kg
Product Description

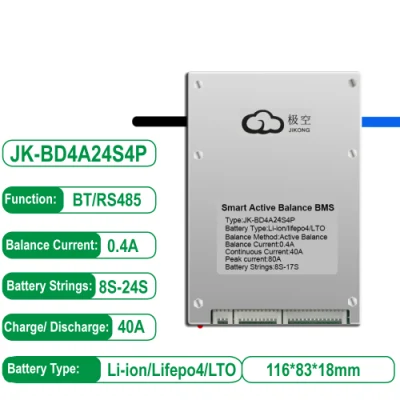

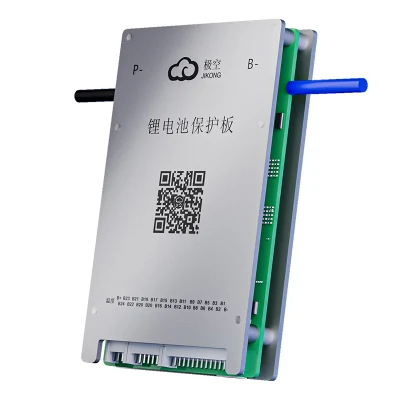

JK BMS BD4A24S4P Smart BMS 8S-4S 0.4A Active Balance 40A RS485 Lifepo4
1.Active balance function, balance cell differential pressure without energy loss, improve the battery's efficiency by 95%.
2.It can be used for 8~24S ternary lithium, lithium cobalt acid, manganese acid, and lifepo4 pack.
3.The continuous operating current is 40A, and the active equalization current is adjustable from 0.1-0.6A.
4.With over charge, over discharge, over current, short circuit protection functions.
5.Single voltage range 1~5V, accuracy ±5mv.
6.With the function of the coulomb meter, the remaining power at a glance
7.Bluetooth communication function, equipped with app, can real-time check the battery status.
8.Provides RS485 and CAN communication interface.
9.GPS remote positioning module Optional.
Client
We have More than 10 Years Industry Experience, OEM/ODM available,
for more any information, pls feel free to contact us.
Send your inquiry to us!
We have More than 10 Years Industry Experience, OEM/ODM available,
for more any information, pls feel free to contact us.
Q1. Can I have a sample order?
A1. Yes, we welcome sample order to test and check quality.
A1. Yes, we welcome sample order to test and check quality.
Q2. Which certificates do you have?
A2. We have CE/FCC/ROHS/UN38.3/MSDS ...etc.
Q3. Is it OK to print my logo on the product?
A3. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4. Which type BMS should I choose?
A4. The current marked on the BMS is the continuous discharge current, not the capacity of the battery, the continuous current of the BMS needs to be greater than the current limit of your controller, if you choose to buy small will frequently trigger power off protection, and even burn out the BMS, such as your equipment controller current limit 30A, it is recommended to buy a 40A/50A
board , the protection board buy large or not buy small.
Q5. What type of charger should I choose?
A5. Lithium battery must choose the corresponding model of charger for lithium battery, do not use lead-acid battery charger, because lead-acid charger may have MOS tube with high-voltage breakdown BMS, thereby damaging the BMS and causing it to not work.
Q6. When is it usually shipped?
A6: After we receive your order, if the quantity is less than 100, usually within a week will arrange delivery, if more than 100 or customized products, please consult customer service for the specific delivery time.
A2. We have CE/FCC/ROHS/UN38.3/MSDS ...etc.
Q3. Is it OK to print my logo on the product?
A3. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4. Which type BMS should I choose?
A4. The current marked on the BMS is the continuous discharge current, not the capacity of the battery, the continuous current of the BMS needs to be greater than the current limit of your controller, if you choose to buy small will frequently trigger power off protection, and even burn out the BMS, such as your equipment controller current limit 30A, it is recommended to buy a 40A/50A
board , the protection board buy large or not buy small.
Q5. What type of charger should I choose?
A5. Lithium battery must choose the corresponding model of charger for lithium battery, do not use lead-acid battery charger, because lead-acid charger may have MOS tube with high-voltage breakdown BMS, thereby damaging the BMS and causing it to not work.
Q6. When is it usually shipped?
A6: After we receive your order, if the quantity is less than 100, usually within a week will arrange delivery, if more than 100 or customized products, please consult customer service for the specific delivery time.
