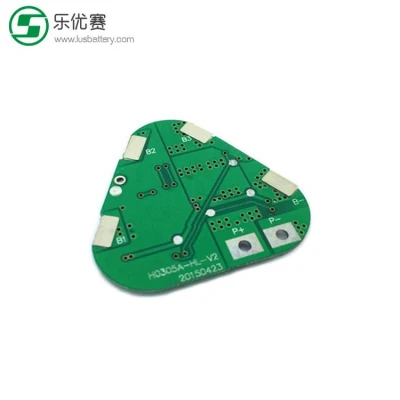

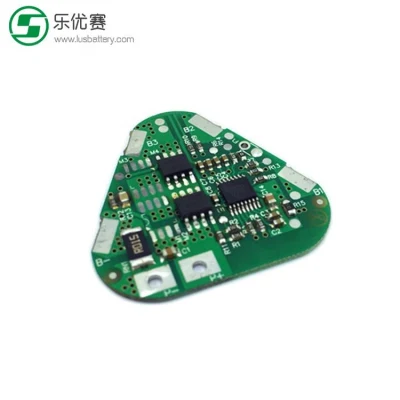

Liion Battery PCM 3s 3A PCB Board/1s 2s 3s 3A LiFePO4 PCM11.1V Li Ion BMS 3s

Metal Coating: Copper
Mode of Production: SMT
Layers: Double-Layer
Base Material: Fr4
Customized: Customized
Condition: New

Products Details

Basic Info.

Model NO.
3S3A PCM
Battery Pack
3s
Samples
Available
Input Charging Current
3A
OEM and ODM
Welcome
Name
PCM
Size
Depends on Your Needed
Transport Package
Cartons
Specification
customize 18650 protection board BMS pcm
Trademark
OEM
Origin
Guangdong, China
HS Code
8534009000
Production Capacity
500000 Piece/Pieces Per Month

Product Description

Description

Product name:    Protection Circuit Module (PCM)
Model No:            PCM-3S3A-SH

Battery type:       LiFePO4 battery

                             Lithium Polymer battery

                             LiCoO2 battery

                             LiMnO2 battery

                             LiCoxNiyMnzO2 battery

For 3S 18650/18500/14500/26650/32650/21700/32700 Lithium-ion Battery Packs

PCM Specification
Details Min Typ Max tolerance Unit
Absolute Maximum Rating
Input Charging Current    3 4   A
Output Discharging Voltage 7.5 10.8 12.6   V
Output Discharging Current   3 4   A
Continuous Output Discharging Current ≤6 A
Protection Parameters (for Individual Cell).
Over-Charge Voltage Protection (OVP)    4.25   ±25mV V
Over-Charge Voltage Protection Release (OVPR)   4.15   ±50mV V
Over-Charge Voltage Protection Delay Time (OVPDT)   1     S
Over-Discharge Voltage Protection (UVP)   2.5   ±0.8V V
Over-Discharge Voltage Protection Release (UVPR)   3   ±0.1V V
Over-Current Discharge Protection (OCDP)   6.66     A
Over-Current Protection Delay Time (OCPDT)   9     mS
Over-Current Discharge Protection Release Remove  load
Short circuit protection Release Remove  load
Normal Mode     100   uA
Idle mode     100   uA
Ship mode    40 80   uA
PCM  Size 53mm*17mm*5mm
PCM Advantages

Feature:

1.True lithum battery pack BMS factory

2.Supply OEM/ODM and custom service

3.High quality with smart balance function

4.Wholesale price

5.Environment

6.Fast delivery



Function:

Detect and protect the battery from over-charge ,over-dicharge, over-current short-circuit

,temperature detecting protection and auotmatically voltage balance function .



Build with high end electronic components (High End IC and MOSFET ) ,simple structure
design will let it have more stable quality working performance , Flexible application ( it can be used for less
series battery by leaving some connection pins at empty status ),full set of protection measures let it works well
without any infulence from external unexpected accidents.



About your products,just tell us the relative voltage/ cells/ current A or equipment etc,

we will help to recomment the most suitable products for you. or we design for you!


Liion Battery PCM 3s 3A PCB Board/1s 2s 3s 3A LiFePO4 PCM11.1V Li Ion BMS 3s



Liion Battery PCM 3s 3A PCB Board/1s 2s 3s 3A LiFePO4 PCM11.1V Li Ion BMS 3s



Liion Battery PCM 3s 3A PCB Board/1s 2s 3s 3A LiFePO4 PCM11.1V Li Ion BMS 3s
