Basic Info.
Model NO.
K-C300
Language
Chinese/English/Russian/Spanish/French
Warranty
Lifetime
Quality Certification
CE
Transmit Voltage
Adjustable (15 Steps)
Connector
Video, S-Video, 2 USB, VGA
Cine-Loop
1200 Frame Cine Loop Memory
After-Sale Service
Return and Replacement
System
PC Platform
Instrument Classification
Class II
Shelf Life
2 Years
Application
Ob, Gyn, Cardiac, Msk, Small Organs
Grey Levels
256
Transport Package
Carton
Specification
530mm*530mm*450mm
Trademark
Karestar
Origin
Jiangsu, China
Product Description

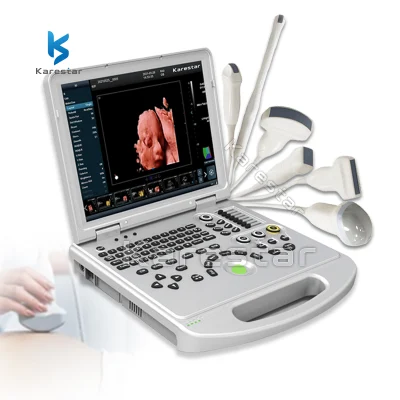

medical ultrasound instruments 3D 4D 5D color doppler portable ultrasound
Quick Details:
1. Large 15 inches LED display
2. Full imaging mode B, 2B, 4B, M, B/M, B/C, B/D, B/C/D, B/CFM/D, PDI Color, Dual Color,
Simultaneous 3D/4D/5D Color Compound, PW, Duplex/Triplex, CFM, CDE, PD etc..
Simultaneous 3D/4D/5D Color Compound, PW, Duplex/Triplex, CFM, CDE, PD etc..
3. Automatic spectrum measurement
4. Full patient database solutions: DICOM3.0, AVI/JPG, USB2.0, HDD, PDF report, etc.
5.Applications: Abdomen / Cardiac / Obstetrics/ Gynecology /Musculoskeletal /Vascular / Pediatrics /Andrology / Small Parts
6. 4D real skin rendering function
7. PC-based Color Doppler with Windows system and can be compatible with any printer
8.DICOM function, can be directly connected with the hospital PACS system
9.With automatic tracing, trapezoidal imaging,one key automatic optimization and other functions
10.Multiple Language: Support Chinese/English/Russian/Spanish/French
| Standard configuration |
| Main unit l 15"LCD with high resolution |
| convex array probe |
| Build-in lithium battery |
| Suitcase |
Application
Abdomen / Cardiac / Obstetrics / Gynecology / Urology / Andrology / Small Parts / Vascular / Pediatrics / Musculoskeletal
| Multiple Language | Support Chinese/English/Russian/Spanish/French |
| USB Ports | 2 |
| Hard Disc | 60GB (SSD), 120G/200GB SSD (Optional) |
| Ethernet Port | 2(100Mb/1000Mb) |
| External Display | VGA, S-VIDEO,HDMI |
| Printer(Optional) | USB Printer, Digital Laser Printer, Digital B/W Thermal Printer |
| Printing Area | Image, report, Image+report |
| DICOM Connectivity | DICOM3.0 Compliant |
| Image Storage | Storage Format: PNG, AVI, BMP, JPEG, DICOM Export Video Format: AVI Export Image Format: PNG, JPEG, BMP, DICOM USB Flash Drive |
| Pan/Zoom | Real-Time Image Zoom, Zoom Range: 100%~400%, Up/Down/Left/Right Inversion,Continuously, real-time dynamic PIP |
| Grey Levels | 256 |
Technology
| Display 15" LCD monitor |
| All-digital signal processing Tech |
| Display model B, 2B, 4B, M, B/M, B/C, B/D, B/C/D, B/CFM/D, PDI Color, Dual Color, Simultaneous 3D/4D/5D Color Compound, PW, Duplex/Triplex, CFM, CDE |
| Multi-beam formation Tech |
| Speckle Reduction Tech |
| Dynamic Tissue Optimization Tech |
| Duplex & Triplex Synchronous Display |
| Directional Power Doppler |
| Imaging Parameters Preset |
| Tissue Harmonic Imaging Tech |
| Image processing preset, PRF, gain, Dynamic range, gray map, Black/white, Left/right, Up/down |
| Beam-former Frequency Range 1~40 MHz |
| Digital Broadband 12288 channels |
| Gray scale 256 |
| Cine-loop 1200 frame cine loop memory |
| Cine Review Speed 1, 2, 4, 8 |
| iTouch One key for optimization |
| USB ports 2 |
| Equipment weight 6.7kg |
| Voltage 100 V~240 V |
| Probe | Convex Array Probe | Linear Array Probe | Trans-Vaginal Probe | Rectal probe | 4D Volume probe | Phased array probe | Micro-convex probe |
| Frequency | Central 3.5 MHz (2.0MHZ to 10.0MHZ) | Central 7.5 MHz (6.0MHZ to 12.0MHZ) | Central 6.5 MHz (5.0MHZ to 9.0MHZ) | Central 6.5 MHz (5.0MHZ to 9.0MHZ) | 4.0MHz/6.5MHz/9.0MHz/H8.0Mhz (depth 20-111MM) | Central 3.5 MHz (2.0MHZ to 5.0MHZ) | Central 4.0 MHz (2.0MHZ to 5.5MHZ) |
| Pitch | 0.516mm | 0.352mm | 0.216mm | 0.216mm | | | N/A |
| Radius | 60mm | N/A | 10 mm | 10 mm | | | N/A |
| Elements | 128 | 128 | 128 | 128 | 128 | 128 | 128 |
Trolley
Printer Hard Disc(120G/200GB SSD)
UPS
Q1: Are you trading company or manufacturer?
A: We are factory which has over 7 years' manufacturing experience.
Q2: Why we find some prices are very high compared with some other suppliers, and from the picture or it's model number, all looks the same?
A: As China is still a developing country, there are only a few products with patent rights, but the copy products spread very fast on the market. Of course, the prices of those copy products is cheaper due to low material, craft and quality control. Anyway, price, quality and service is tightly related.
Q3: What's the MOQ?
A: The MOQ is 1 Set, and samples can be sent for your evaluation.
Q4: How can get the shipping cost?
Please tell us your destination or delivery address, we will check the best Sea Freight or Air Freight for you based on your requirements.
Q5: How long is your delivery time?
A: Usually 3-30 days after order confirmed. Based on the item and quantity.
Q6: Can you do OEM/Private logo/label?
A: Yes, we can do OEM/private logo/label for you. We also have complete facilities and R&D team ready for your service.
Q7: What is your terms of payment?
A: We accept T/T,trade assurance order, L/C, Western union, Paypal and more. Please suggest your preferred payment method.
Q8: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q9: How to deal with the faulty?
A: First, our products are produced under in strict quality control system, but if any faulty, we will send new spare partrs for free within warranty year.
Secondly, our after-sales department will periodically follow up customers.
