Basic Info.
Model NO.
SF100-6
Description
Battery Discharge Tester, VRLA Battery Tester
Discharge Current
0.5-10A
Charge Current
0.5-6A
Discharging Terminal Voltage
2-18V
Pulse Repair Current
0.3A
Functions
Charge, Discharge, Cycle, Pulse Repair
Approval
CE
Quality Management System
ISO9001
Advantage 1
15+Year Experience
Advantage 2
Strong R&D Team
Advantage 3
Advanced Production Technology
Advantage 4
Perfect After-Sale Guarantee
Transport Package
Seaworthy Packing
Specification
710*400*170 mm
Trademark
DK
Origin
China
HS Code
9030849000
Production Capacity
50000 Pieces/Year
Product Description
Description:

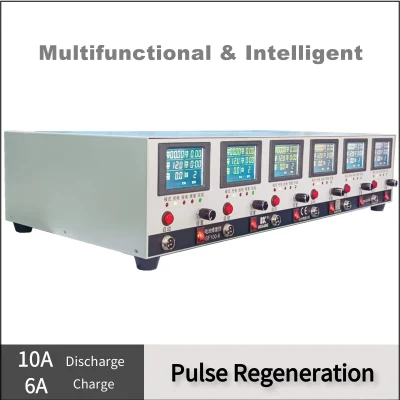

Storage Battery Automatic Charging Discharging Analyzer SF100-6 is a professional battery performance testing instrument integrated with high precision capacity discharge test, ordinary three-stage charge, water-replenishing maintenance charge, pulse repair. It can set the voltage and current of charge and discharge by the user and has the function of auto charge-discharge cycling, The instrument also has the pulse repair function to repair the vulcanization of the battery, so that the battery capacity can be restored to normal levels, which can greatly prolong service life and extending the warranty time.
It's an essential instrument for battery performance testing & scheduled maintenance to prolong the service life of the batteries.
Features:
- Instrument displays by LCD, each index is clear at a glance.
- The parameter setup and parameter switching are set and switched by a "START" switch and a "SET" knob. All parameters(voltage, current, mode) setting have the saving function.
- Intelligent speed fan can run continuously, delay the power-off of the fan, and blow-off the remaining heat.
- Polarity protection, anti-reverse connection, and so on.
- Each circuit is the independent module, no influence each other
- The instrument have simple mode and professional mode for choice to meet the different requirement of the user.
- The high-frequency pulse sulfur removal technology has a good and non-destructive repair effect on the battery with negative plate sulphurization.
- The set parameters is automatic saved in the whole process.
- Data protection startup: If the connection cables disconnected from the battery during the charging and discharging, after reconnecting the cables with the battery, press and hold the "Start" button to continue working.
- Power-off memory function.
Basic Function:
1.Charge
2.Discharge(Capacity measurement)
3. Auto-cycle charge and discharge
4.Water-replenishing maintenance charge
5. Pulse repair
Two Operation Modes
Simple Mode and Professional Mode
Simple Mode: The device defaults to the simple mode when it is turned on. In the simple mode, you only need to select the battery voltage, charge and discharge current, and start with one button.
Professional Mode: Professional mode is suitable for users with certain technical level and professional knowledge. Users can customize charge and discharge parameters to meet the needs of customers' professional testing.
The device provides 10 different working modes, more intelligent operation and more powerful functions.
Technical Specification
Illustrations:
LCD Interface:
Packing Information
About us:
Founded in 2005, DEKANG is a high-tech enterprise involved in researching & development, production and sales of Storage Battery Measuring & Maintenance Equipment, EV Charging Station, Shared Power Swapping Station, Shared Mobility Solution. We provide the clients with the complete solution of storage battery service.
Products Category:
Battery Charging & Discharging Tester
Battery Testing and Recovery Equipment
Lithium Battery Intelligent Charger
E-Bike/E-scooter Charging Station
Shared Battery Charging & Swapping System
Intelligent Lithium Batteries
Battery-swapping E-bike/E-scooter and so on.
Why choice us?
Delivery
Sample order dispatched by express via DHL, FEDEX,TNT,UPS or any other express services you prefer to, also we can coordinate to send it to other agreed address in China for loading with your convenience
Normal order delivered by sea or air as per your instructions.
Equipment operation training & guidance
In addition to providing user manual and operation videos, after you purchase the equipment, we will also provide operation training and guidance support through telephone, email, video connection, remote connection and other ways, so as to ensure that you are proficient in the operation and use of the equipment. Our equipment is intelligent in design, rich in functions and easy to operate. Make it easy for you to operate.
Warranty:
12-month warranty, lifelong after-sale service and free technology service.
After-sales service
(Very important: the DK exporting division is the only official exporting department of DK INTELLIGENT. Anyone who obtains our equipment from a third party or through other channels may have the risk of not being able to obtain official after-sales & technology services. To ensure that you get official service and technical support after purchasing the product, overseas users please purchase the products directly from the official exporting department of DK INTELLIGENT or our local authorized distributor.)
.
Free replacement parts will be provided during the warranty period, and we will dispatch the replacement parts to the user by DHL,UPS,TNT or FEDEX at our account and guide the user to replace via phone, email or video. The modular design of our equipment makes it easy to install and replace
After the warranty period, the cost of replacement parts will be charged. If you pay for the replacement parts, you can enjoy free warranty within half a year from the maintenance date for the same problem.
Lifelong free technology service provided by us, the users can advise malfunction and inquire the maintenance technology through the telephone, fax, email, and social media, etc.
Paid service
The conditions in the below not included in the free maintenance range, the company provide with the paid service, kindly note:
EXPO
R & D
PRODUCTION
DEKANG IMAGES

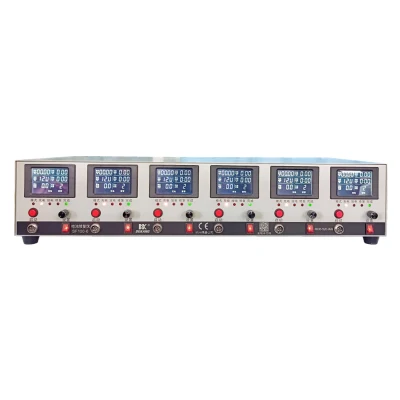

Storage Battery Automatic Charging Discharging Analyzer SF100-6 is a professional battery performance testing instrument integrated with high precision capacity discharge test, ordinary three-stage charge, water-replenishing maintenance charge, pulse repair. It can set the voltage and current of charge and discharge by the user and has the function of auto charge-discharge cycling, The instrument also has the pulse repair function to repair the vulcanization of the battery, so that the battery capacity can be restored to normal levels, which can greatly prolong service life and extending the warranty time.
It's an essential instrument for battery performance testing & scheduled maintenance to prolong the service life of the batteries.
Applicable Batteries:
6V/8V/12V/16V/18V Lead-acid batteries/Lithium-ion batteries.
Features:
- Instrument displays by LCD, each index is clear at a glance.
- The parameter setup and parameter switching are set and switched by a "START" switch and a "SET" knob. All parameters(voltage, current, mode) setting have the saving function.
- Intelligent speed fan can run continuously, delay the power-off of the fan, and blow-off the remaining heat.
- Polarity protection, anti-reverse connection, and so on.
- Each circuit is the independent module, no influence each other
- The instrument have simple mode and professional mode for choice to meet the different requirement of the user.
- The high-frequency pulse sulfur removal technology has a good and non-destructive repair effect on the battery with negative plate sulphurization.
- The set parameters is automatic saved in the whole process.
- Data protection startup: If the connection cables disconnected from the battery during the charging and discharging, after reconnecting the cables with the battery, press and hold the "Start" button to continue working.
- Power-off memory function.
1.Charge
2.Discharge(Capacity measurement)
3. Auto-cycle charge and discharge
4.Water-replenishing maintenance charge
5. Pulse repair
Simple and Friendly Operation:
Two Operation Modes
Simple Mode and Professional Mode
Simple Mode: The device defaults to the simple mode when it is turned on. In the simple mode, you only need to select the battery voltage, charge and discharge current, and start with one button.
Professional Mode: Professional mode is suitable for users with certain technical level and professional knowledge. Users can customize charge and discharge parameters to meet the needs of customers' professional testing.
Ten Work Modes
The device provides 10 different working modes, more intelligent operation and more powerful functions.
| Mode Code | Function |
| 0 | Enquire |
| 1 | Capacity Test |
| 2 | Typical Charging |
| 3 | Discharging→Idle→Charging |
| 4 | Charging→Idle→Discharging→Idle→Charging |
| 5 | Discharging→Idle→Charging→Idle→Discharging→Idle→Charging |
| 6 | Charging→Idle→Discharging→Idle→Charging→Idle→Discharging→Idle→Charging |
| 7 | Automatic Repair Mode: Charging→Idle→Repair→Idle→Discharging→Idle→Charging |
| 8 | Pulse Repair Mode |
| 9 | Charging→Discharging |
Technical Specification
| Model No.: | SF100-6 |
| Channel Number: | 6 Channels |
| Discharging terminal voltage: | 2-20V |
| Discharging max. voltage: | 20 V |
| Discharging rated loading current: | 0.5 A - 10 A |
| Charging current accuracy: | ±0.1 A |
| Charging voltage accuracy: | ±0.05 A |
| Charging min. voltage: | 3.6 V |
| Charging max. voltage: | 23 V |
| Max. charging current: | 6 A |
| Min. charging current: | 0.5 A |
| Pulse repair current: | 0.3 A |
| Charge and floating charge transition conditions: | When it reaches the high constant voltage and charge for 3.5 hrs or charge current less than 0.3A, the system automatically turn to floating charge |
Illustrations:
LCD Interface:
Standard Accessories:
Packing Information
| Model | Product Size | Package Size | G.W. |
| SF100-6 | 710*330*150 mm | 850*500*310 mm | 18.8 KG |
Application in the battery plants
