Basic Info.
Packaging & Delivery
Product Description
Product Information
| Product parameters(DTN-63) | |
| Rated capacity | 63KVA |
| Voltage input | 380V/50HZ single phase |
| Inlet wire | 25mm² |
| Secondary voltage | 7.2V |
| Max short-circuit current | 24KA |
| Duty cycle | 20% |
| cylinder | φ100 |
| Cylinder stroke | 80mm |
| Max pressure | 3900N |
| Projection Platform inner space | 220mm |
| Copper bar diameter | φ54mm |
| Holder diameter | φ25mm |
| Electrode diameter | φ16mm |
| Flow of cooling water | 6L/min |
| Air source pressure | 0.1-0.7Mpa |
| Welding ability | Cold plate 3mm+3mm |
| Arm length | 380/580/780mm |
| Net Weight | 255KG |
| Gross Weight | 310KG |
| Outline size | 920*530*1530mm |
| Outline size | 940*550*1650mm |
Product Description
Product Applications Packing&Shipping
Why choose Jiaxiao products?
1. About product purpose.
(1). The pursit of quality, advocating the best services.
(2). For customers to reduce costs and improve efficiency.
2. About factory.
(1). Over 30 years of OEM&ODM experience on specialized resistance welding machine. Excellent service on before sale, on sale and after sale.
(2). Quick response, all your question will be answered within 48 hours. Our motto is "Quality first, customer utmost". We have professional sales team, who is not only a repair but also a problem solver, we always give customers the most feasible marketing suggestions according to their own market mode.
3. About Market.
Our products are widely accepted all over the world, such as USA, Mexico, Southeast Asia, India etc.
4. Shipping
(1). Sea transportation, land transportation,air transportation, the express transport and so on.
(2). Please choose your convenient shipping method according your details requirement.
(3). The shipping discount is different in different season and depend different weight, we will choose the cheapest and safest way according your details quantities.
5. Delivery
(1). Delivery time is 5 working days after confirm contract.
(2). OEM 15-30 days after all info confirmed.
(3). Depends on order quantity.
(4). Special product to discuss.
6. Warranty
One year warranty the seller shall supply the free replacement spare parts (but Not including the mould, wearing parts and the item of wrong using.), the transformer guarantee is 5 years.
Development history
In 1992, our company was established as the "Shiya Jiaxiao Electrical maintenance department" Our founder was only 19 years old.
In 1993, the first "spot welder" was introduced in the maintenance department between ten and twenty square meters, from which it formed a tie-in with other welding machines.
In 1995, the first barrel of gold was produced in the insulation cup industry and our seam welder was introduced.
In 2003, the factory moved to the Gushan Industrial Base. The facility covered 2,000 square meters and a number of additional management and technical personnel were hired as we grew from a family workshop to a full-fledged factory.
In 2007, an information management system was introduced to lay the foundation for operational standardization that would streamline work and create a data-oriented management system.
In 2008, the "Yongkang Jiaxiao Welding Automation Equipment Co., Ltd." was officially named as we entered a stage of standardized operational management.
In 2010, we formulated a medium to long-term development plan to define the mission, vision, and values of our production enterprise.
In 2011, we established our automation business unit to produce a variety of stamping production lines and lay the foundation for automated welding machinery that would grow to a large catalog of products.
In 2013, we participated in the Canton Fair, effectively breaking into the international marketplace.
In 2014, we moved our base to the Chenxi New Area, this allowed us to expand production and meet requirements.
In 2016, we partnered with an Italian design company to develop three series of welding machines. This resulted in the combination of our 25 years of manufacturing experience with new ideas from an outside source.
In 2017, we integrated a new line of services to provide customers with resistance welding products, special equipment, welding core components, cost-effective transformers, cylinder heads, copper parts and cloud controllers. The performance indicators of these products (power factor, temperature rise value) far exceeded the national standards.

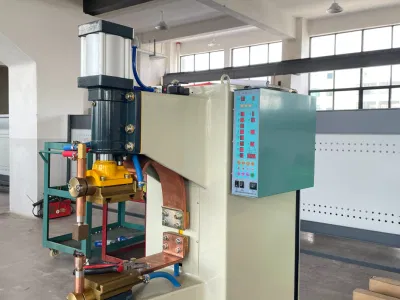

Spot Welding Machine (DN-35) is simple to operate, doesn't require welding rods, wires, arc gases or professional welders; Save cost.
Main features of the machine
(1) Novel structure, special design, good rigidity. The welding terrace is convenient to customers to fix tongs, and weld with multiaspect ,multi-welding spot.
(2) Adopt the microcomputer crosscurrent control, current steady, high definition, easy to handle.
(3) The transformer adopt the import permalloy sheet steel, the secondary adopt the full copper water cooled structure.
(4) Adopt the accuracy guidance structure. direct pressure to cylinder body, high quality, high speed welding, pressure steady.
