- Product Description
Basic Info.
Model NO.
DNY-16K, DNY-25K, DNY-35K, DNY-50K
Electrode Stroke
Vertical
Electric Current
Secondary Rectification
Transmission
Manual Press
Conductive Way
Both-Sided
Welding Spot Number
Single
Type
Universal
Material
Steel and Copper
Brand
Dly Electric
Certification
ISO, CE, RoHS
Model
Dny Series
Transport Package
Plywood Box
Specification
Net Weight: 85KG to 150KG
Trademark
DLY Electric
Origin
China
HS Code
8515219900
Production Capacity
500sets/Year
Packaging & Delivery
Package Size
25.00cm * 10.00cm * 15.00cm
Package Gross Weight
950.000kg
Product Description

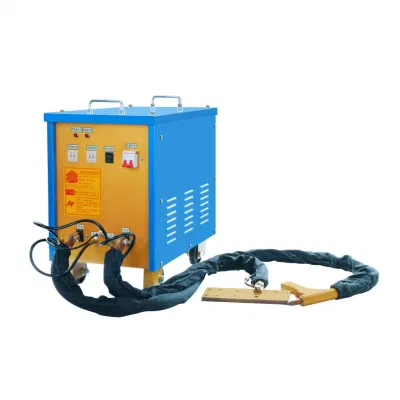

DNY Series Portable Spot Welding Machine
Main Application and Characteristics
1.The device belongs to one kind of resistance spot projection welding machine, it is composed of the machinery frame structure, welding transformer, control system, water-cooling welding cable and welding torch, etc. The main electrical circuit adopts the diode thyristor(SCR) contactless switch, to make sure the circuit switch time rapidly, accurately. The control system can adjust the welding time precisely,welding repeatability and welding consistency are both very good,also easy maintenance.
2.Compare to the DN Series Resistance Spot Welding Machine,DN3 Series Portable Spot Welder has the advantages of small volume, light weight and other characteristics,install four rollers to the machine to make sure it can move conveniently,furthermore no need air pressure to operate it.
By the 2meters length water-cooling welding cable and hand-held spot welding gun,the operation is quite flexible, convenient.Using different welding guns,it can realize portable clamp type spot welding, single spot welding etc.
3.Generally for low carbon steel, steel, galvanized steel, stainless steel and other metal,Its welding range is 0.1mm---4.0mm.
It is widely used in all kinds of sheet metal,steel box and cabinet,iron furniture,stainless steel kitchen products,stainless steel door manufacturing and steel wire mesh reweld for leakage welding etc.
Technical Parameter
| Model Parameter | DNY-16K | DNY-25K | DNY-35K | DN3-50K |
| Rated Power | 16KVA | 25KVA | 35KVA | 50KVA |
| Rated Input Voltage | 380V-420V,50/60HZ | |||
| Rated Primary Current | 45A | 70A | 85A | |
| Welding Cable Length | 2meter or any other special length | |||
| Max Welding Current | 10KA | 15KA | 20KA | 30KA |
| Cooling Way | Transformer---Air Cooling, Welding Electric Cable---Water Cooling | |||
| Weight | 85KG | 95KG | 130KG | 150KG |
