Basic Info.
Model NO.
SAS5000U- 5KWH
Cycle Life
More Than 6000
Certification
IEC/CE
Battery Type
Lithium Ion, LiFePO4
BMS
Already Matched
Battery Protection
PCM/PCB/BMS
Capacity
100ah, 150ah, 200ah
Transport Package
Wodden Carton with Pallet
Specification
680× 480× 180(220)mm
Trademark
Sail Solar
Origin
Anhui, China
Production Capacity
1000 Piece/Pieces Per Month
Product Description
| 48V Battery Specifications | |||
| Model No | SAS5000U- 5KWH | SAS7000U- 7KWH | SAS10000U- 10KWH |
| Voltage | 48 V | 48 V | 48 V |
| Capacity | 100 Ah | 150 Ah | 200 Ah |
| Energy | 4.8 kWh | 7.2 kWh | 9.6 kWh |
| Operation voltage | 42-54 Vdc | 42-54 Vdc | 42-54 Vdc |
| Max.charging voltage | 54 Vdc | 54 Vdc | 54 Vdc |
| Max.charging and discharging current | 100A | 150A | 200A |
| Max Power | 4800 W | 7200 W | 9600 W |
| Life time(25°C) | 10 years | ||
| Life cycles(80% DOD, 25°C) | 6000 Cycles | ||
| Storage time / temperature | 5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C | ||
| Operation temperature | -20°C to 60°C @60+/-25% Relative Humidity | ||
| Storage temperature | 0°C to 45°C @60+/-25% Relative Humidity | ||
| Lithium Battery Standard | IEC62619, UN38.3, ROHS,CE-EMC | ||
| Enclosure protection rating | IP21 | ||
| Dimensions(L×W×H) | 680×480×180(220)mm | 680×480×180(220)mm | 680×480×180(220)mm |
| Weight | 58.5 kg | 75 kg | 96.5 kg |
| 51.2V Battery Specifications | |||
| Model No | SAS5000U- 5KWH | SAS7000U- 7KWH | SAS10000U- 10KWH |
| Voltage | 51.2 V | 51.2 V | 51.2 V |
| Capacity | 100 Ah | 150 Ah | 200 Ah |
| Energy | 5.12 kWh | 7.68 kWh | 10.24 kWh |
| Operation voltage | 44-58 Vdc | 44-58 Vdc | 44-58 Vdc |
| Max.charging voltage | 58 Vdc | 58 Vdc | 58 Vdc |
| Max.charging and discharging current | 100 A | 150 A | 150 A |
| Max Power | 5120 W | 7680 W | 10240 W |
| Life time(25°C) | 10 years | ||
| Life cycles(80% DOD, 25°C) | 6000 Cycles | ||
| Storage time / temperature | 5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C | ||
| Operation temperature | -20°C to 60°C @60+/-25% Relative Humidity | ||
| Storage temperature | 0°C to 45°C @60+/-25% Relative Humidity | ||
| Lithium Battery Standard | IEC62619, UN38.3, ROHS,CE-EMC | ||
| Enclosure protection rating | IP21 | ||
| Dimensions(mm, L×W×H) | 680×480×180(220) | 680×480×180(220) | 680×480×180(220) |
| Weight | 60.5 kg | 79.5 kg | 102.5 kg |

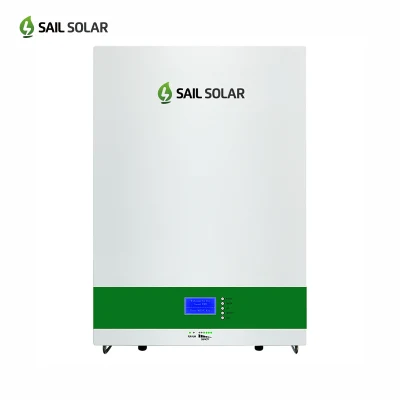

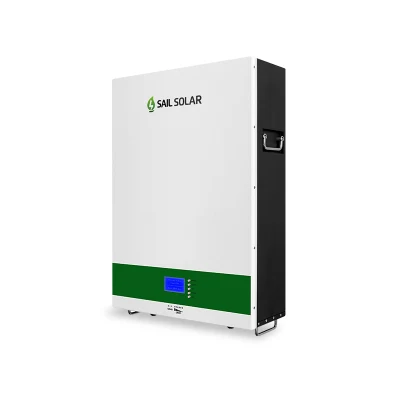

Attractive Design
Sail Solar Lithium battery has compact design, LCD screen, convenient setting buttons, bluetooth Monitor on your smartphones, and cables&accessories ready for installation. To welcome the world cooperation we accept OEM with your logo design!
Wide Application
Sail Solar Lithium battery powerwall series are widely used in solar systems for residential and commercial use. With more than 6000 times. Deep cycle, up to 90% DOD and phosphate battery Cell, Sail Solar Powerwall has won global approval!
Top Raw Material
CATL is leading lithium battery cells manufacturer all over the world, Here are four advantages of CATL 1.A high energy density. 2.A good cycling performance. The cycle life is 6000 times. 3.A long battery life. 4. Good low temperature performance.
.
Wide Compatibility
Our Lithium battery modules can cooperate with most inverters on the market. More brands are coming soon.
Factory Features
Sail Solar has developed an industry-leading intelligent manufacturing system, and constantly leads innovation in equipment and technology with the independent R&D of a top-notch technical team. With world-class production automation, intelligence, and production efficiency, Sail Solar has built an efficient intelligent factory employing new technologies such as AI, image recognition, machine learning, predictive algorithms and 5G.
