- Product Description
Basic Info.
Model NO.
DN-25KVA, DN-35KVA, DN-50KVA, DN-75KVA, DN-100KVA
Conductive Way
Both Sides and One Side
Welding Spot Number
Single
Type
Universal
Model
DN-25kVA, DN-35kVA, DN-50kVA, DN-75kVA, DN-100kVA
Brand
Dly Electric
Specifications
150*100*175cm
Certifications
ISO, CE, RoHS
Transport Package
Plywood Box
Specification
150X100X175CM
Trademark
DLY Electric
Origin
China
HS Code
8515219000
Production Capacity
500sets/Year
Product Description

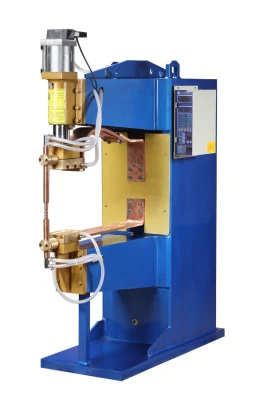

DN Series Pneumatic AC Spot & Projection Welding Machine
Features of the Machine1.Manufactured in accordance with international ISO Standard.
2.European CE Certified.
3.European Type Microprocessor Welding Control has transparent safety cover to protect a keypad and has a lock to allow only authorized personnel to access the program.
4.Welding Control maintains main parameters such as welding current; weld time, off time, etc. with digital accuracy.
5.Any of 23 weld schedules can be easily selected for execution.
6.Rigid Frame of the Machine allows the use as Projection or Spot welder.
7.Improved water-cooling system guarantees flawless performance in heavy-duty applications.
8.Machine is painted with Lead-Free paint.
9.All materials used in design are environmentally friendly.
Main Technical Parameters
Item | Rated Capacity | Rated Primary Voltage | Rated Freguency | Max. Secondary Curent | Rated Duty Cycle | Arm Length | Maximum Force | Electorode Stroke | Cooling Water Flow | Weight | Electrode Size | ||
Model | Electrode Head | Electrode Holding Rod | Electrode Arm | ||||||||||
| KVA | V | Hz | A | % | mm | N | mm | L/min | Kg | (mm) | (mm) | (mm) | |
| DN-25 | 25 | 380 | 50/60 | 17500 | 50 | 380 | 2500 | 60 | 6 | 300 | 16 | 20 | 45*200 |
| DN-35 | 35 | 380 | 50/60 | 18500 | 50 | 380 | 4000 | 60 | 6 | 380 | 16 | 25 | 50*200 |
| DN-50 | 50 | 380 | 50/60 | 20000 | 50 | 380 | 6280 | 60 | 6 | 430 | 16 | 25 | 50*200 |
| DN-75 | 75 | 380 | 50/60 | 25000 | 50 | 380 | 6280 | 60 | 8 | 500 | 16 | 25 | 60*200 |
| DN-100 | 100 | 380 | 50/60 | 30500 | 50 | 380 | 6280 | 60 | 8 | 600 | 16 | 25 | 60*200 |
| DN-150 | 150 | 380 | 50/60 | 38500 | 50 | 380 | 6280 | 60 | 12 | 750 | 20 | 30 | 80*250 |
| DN-200 | 200 | 380 | 50/60 | 43000 | 50 | 380 | 6280 | 60 | 12 | 800 | 20 | 30 | 80*250 |
| DN-250 | 250 | 380 | 50/60 | 48000 | 50 | 380 | 6280 | 60 | 12 | 900 | 20 | 30 | 80*250 |
