Basic Info.
Model NO.
WV-100KW-200KWh-C
Parallel
Yes up to 3 Units
PV Inputs
10 Mppts
Solar Panel
A Grade 550W 555W 560W Solar Module
Manufacturer
Yes
AC Output
380V/400V/415V
Battery Type
LiFePO4/Lithium Battery 48V
Battery Capacity
100-600kwh Solar Storage Battery
Support
UPS/Black Start/Dg
Cooling
Smart Air Cooling
PV Cable
4mm2 or 6mm2
Mounting
Metal Rooftop , Tile Rooftop or Ground
Training
Solar System Installation
Customized
Customize Energy Storage System
Transport Package
Wooden Box
Specification

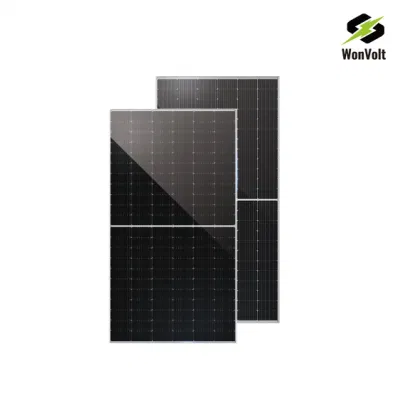

N type Solar Panel
Trademark
WonVolt
Origin
China
HS Code
8501723000
Production Capacity
50000sets/Year
Product Description
| Equipment | Model | WV-100KW-200.7KWh-C | WV-200KW-401KWh-C | WV-300KW-602KWh-C |
| PV Module | WV-72KUN-565 | 187 | 374 | 561 |
| Inverter | WIT-100K-HU | 1 | 2 | 3 |
| Batttery | WV51280H | 14 | 28 | 42 |
| Control Box | 1 | 2 | 3 | |
| Connector | MC4 | 40 | 80 | 120 |
| PV cable | PV1-F 1*4mm2 | 1100 | 2200 | 3300 |
| ATS(opt) | ATS300KW | 1 | 1 | 1 |
| AC Cabinet(opt) | XL-1 | 0 | 2 | 2 |
| Remote moniting | WIFI or SEM-X | 1 | 1 | 1 |
| Mounting Structure | Roof/Ground | 1 | 1 | 1 |

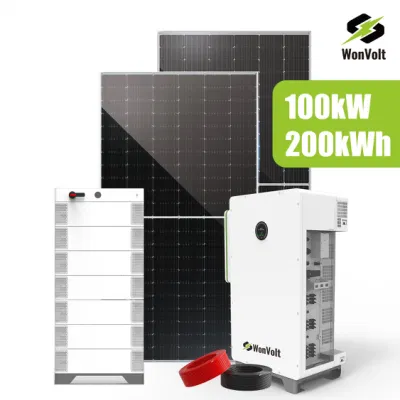

WonVolt Solar System 100kw 100kwh 200kwh 50kw 150kw 250kw 350kw 500kw 800kw 1MW Solar Energy Storage System with LiFePO4 Battery
